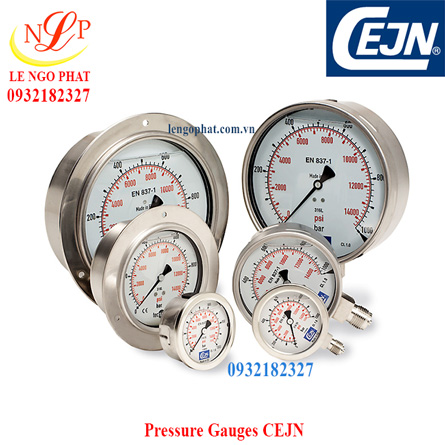

Pressure Gauges 150mm CEJN

Pressure Gauges



Bottom and panel mounted pressure gauges in models up to 5500 bar (550 MPa). All models are glycerine filled for improved performance and long life. The gauges are made of stainless steel and feature high accuracy and a long service life.

Giá: 0932182327

Mã sản phẩm: Pressure Gauges

Model: CEJN - Made in Sweden

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest
Max rec. working pressure 75% of the full scale range.
Material Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations. Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
Units bar and PSI or MPa
Protection class IP 65
Liquid Filled with 98% glycerine.
Accuracy Ø 63 mm +- 1.6% of full scale. Ø 100 and 150 mm +- 1% of full scale.
Temperature range 15°C — +65°C (59°F — +149°F)
Miscellaneous Ø 100 and 150 mm manufactured in accordance with EN 837-1. Dimensions F and B have a tolerance of +/-1mm due to the rubber gasket around the face of the gauge.



Pressure Gauges 150mm CEJN

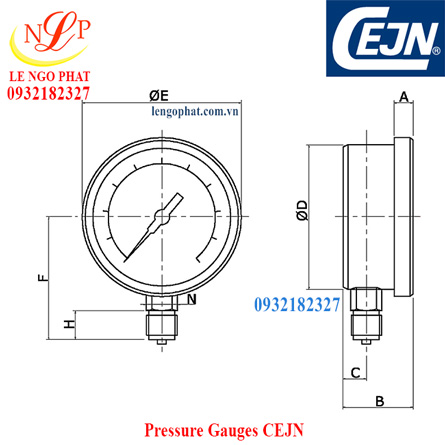

Part No. Category Description Class Connection Scale max working pressure A B C D E F H J K L N
199404120 Ø 150 mm Bottom connection Male thread G 1/2" 1000 bar (14503 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404121 Ø 150 mm Bottom connection Male thread G 1/2" 1600 bar (23206 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404122 Ø 150 mm Bottom connection Male thread G 1/2" 2000 bar (29007 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404153 Ø 150 mm Bottom connection Female thread M16 x 1.5 3000 bar (43511 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404154 Ø 150 mm Bottom connection Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404155 Ø 150 mm Bottom connection Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404173 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404174 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404175 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404253 Ø 150 mm Bottom connection Female thread M16 x 1.5 3000 bar (43511 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404254 Ø 150 mm Bottom connection Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404255 Ø 150 mm Bottom connection Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404273 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404274 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404275 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404320 Ø 150 mm Panel mounting Male thread G 1/2" 1000 bar (14503 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404321 Ø 150 mm Panel mounting Male thread G 1/2" 1600 bar (23206 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404322 Ø 150 mm Panel mounting Male thread G 1/2" 2000 bar (29007 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404353 Ø 150 mm Panel mounting Female thread M16 x 1.5 3000 bar (43511 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404354 Ø 150 mm Panel mounting Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404355 Ø 150 mm Panel mounting Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404373 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404374 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404375 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm
Max rec. working pressure 75% of the full scale range.
Material Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations. Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
Units bar and PSI or MPa
Protection class IP 65
Liquid Filled with 98% glycerine.
Accuracy Ø 63 mm +- 1.6% of full scale. Ø 100 and 150 mm +- 1% of full scale.
Temperature range 15°C — +65°C (59°F — +149°F)
Miscellaneous Ø 100 and 150 mm manufactured in accordance with EN 837-1. Dimensions F and B have a tolerance of +/-1mm due to the rubber gasket around the face of the gauge.



Pressure Gauges 150mm CEJN
Part No. Category Description Class Connection Scale max working pressure A B C D E F H J K L N
199404120 Ø 150 mm Bottom connection Male thread G 1/2" 1000 bar (14503 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404121 Ø 150 mm Bottom connection Male thread G 1/2" 1600 bar (23206 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404122 Ø 150 mm Bottom connection Male thread G 1/2" 2000 bar (29007 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404153 Ø 150 mm Bottom connection Female thread M16 x 1.5 3000 bar (43511 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404154 Ø 150 mm Bottom connection Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404155 Ø 150 mm Bottom connection Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404173 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404174 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404175 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404253 Ø 150 mm Bottom connection Female thread M16 x 1.5 3000 bar (43511 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404254 Ø 150 mm Bottom connection Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404255 Ø 150 mm Bottom connection Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404273 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404274 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404275 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404320 Ø 150 mm Panel mounting Male thread G 1/2" 1000 bar (14503 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404321 Ø 150 mm Panel mounting Male thread G 1/2" 1600 bar (23206 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404322 Ø 150 mm Panel mounting Male thread G 1/2" 2000 bar (29007 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404353 Ø 150 mm Panel mounting Female thread M16 x 1.5 3000 bar (43511 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404354 Ø 150 mm Panel mounting Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404355 Ø 150 mm Panel mounting Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404373 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404374 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404375 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm
Max rec. working pressure 75% of the full scale range.
Material Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations. Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
Units bar and PSI or MPa
Protection class IP 65
Liquid Filled with 98% glycerine.
Accuracy Ø 63 mm +- 1.6% of full scale. Ø 100 and 150 mm +- 1% of full scale.
Temperature range 15°C — +65°C (59°F — +149°F)
Miscellaneous Ø 100 and 150 mm manufactured in accordance with EN 837-1. Dimensions F and B have a tolerance of +/-1mm due to the rubber gasket around the face of the gauge.



Pressure Gauges 150mm CEJN
Part No. Category Description Class Connection Scale max working pressure A B C D E F H J K L N
199404120 Ø 150 mm Bottom connection Male thread G 1/2" 1000 bar (14503 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404121 Ø 150 mm Bottom connection Male thread G 1/2" 1600 bar (23206 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404122 Ø 150 mm Bottom connection Male thread G 1/2" 2000 bar (29007 PSI) 15 mm 50.5 mm 15.5 mm 149.6 mm 161 mm 117 mm 20 mm - mm - mm - mm 22 mm
199404153 Ø 150 mm Bottom connection Female thread M16 x 1.5 3000 bar (43511 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404154 Ø 150 mm Bottom connection Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404155 Ø 150 mm Bottom connection Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404173 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404174 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404175 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 16 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404253 Ø 150 mm Bottom connection Female thread M16 x 1.5 3000 bar (43511 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404254 Ø 150 mm Bottom connection Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404255 Ø 150 mm Bottom connection Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404273 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404274 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404275 Ø 150 mm Bottom connection Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 24 mm 50 mm 15 mm 149.5 mm 165 mm 94 mm         22 mm
199404320 Ø 150 mm Panel mounting Male thread G 1/2" 1000 bar (14503 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404321 Ø 150 mm Panel mounting Male thread G 1/2" 1600 bar (23206 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404322 Ø 150 mm Panel mounting Male thread G 1/2" 2000 bar (29007 PSI) 25.5 mm 50.5 mm 31 mm 149.6 mm 161 mm 81 mm 20 mm 190 mm 6 mm 173 mm 22 mm
199404353 Ø 150 mm Panel mounting Female thread M16 x 1.5 3000 bar (43511 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404354 Ø 150 mm Panel mounting Female thread M16 x 1.5 4000 bar (58015 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404355 Ø 150 mm Panel mounting Female thread M16 x 1.5 5500 bar (79770 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404373 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 3000 bar (43511 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404374 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 4000 bar (58015 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm 17 mm
199404375 Ø 150 mm Panel mounting Female thread 9/16"-18 UNF 5500 bar (79770 PSI) 24 mm 50 mm 33 mm 149.5 mm 165 mm 69 mm   192 mm 5 mm 178 mm
DOWNLOAD Catalogue
